How to Install Motion Sensors
Getting your home security system set up can feel like a big task, but knowing how to install motion sensors properly makes a huge difference. These devices act as your eyes and ears, triggering alarms and notifications when unexpected movement is detected. Proper installation ensures they’re reliable, keeping you protected without unnecessary fuss.
In our research, we've found that understanding the core principles of motion sensor placement and connection is key to success. For instance, most Passive Infrared (PIR) sensors require a clear line of sight and operate best within a specific temperature range, often around 65-75°F, according to manufacturer specifications. Let’s dive into the visual cues and steps that make this installation process manageable.
Why You Need Visuals for Motion Sensor Installation
When it comes to setting up motion sensors, simply reading instructions can only take you so far. The best way to understand the nuances of installation is through visual guidance. Diagrams and clear photos show you exactly where to place sensors, how wiring connects, and what potential pitfalls to watch out for.
This visual approach helps prevent common mistakes that can lead to false alarms or missed detections.
Understanding Your Sensor's Anatomy
Before you mount anything, take a moment to familiarize yourself with the parts of your motion sensor. You'll typically see the lens cover, which contains the PIR or microwave detection elements, and the mounting bracket. Some models also have DIP switches for configuration or tamper-proof mechanisms.
Knowing these components ensures you handle them correctly during installation.
Common Placement Scenarios: Visual Examples

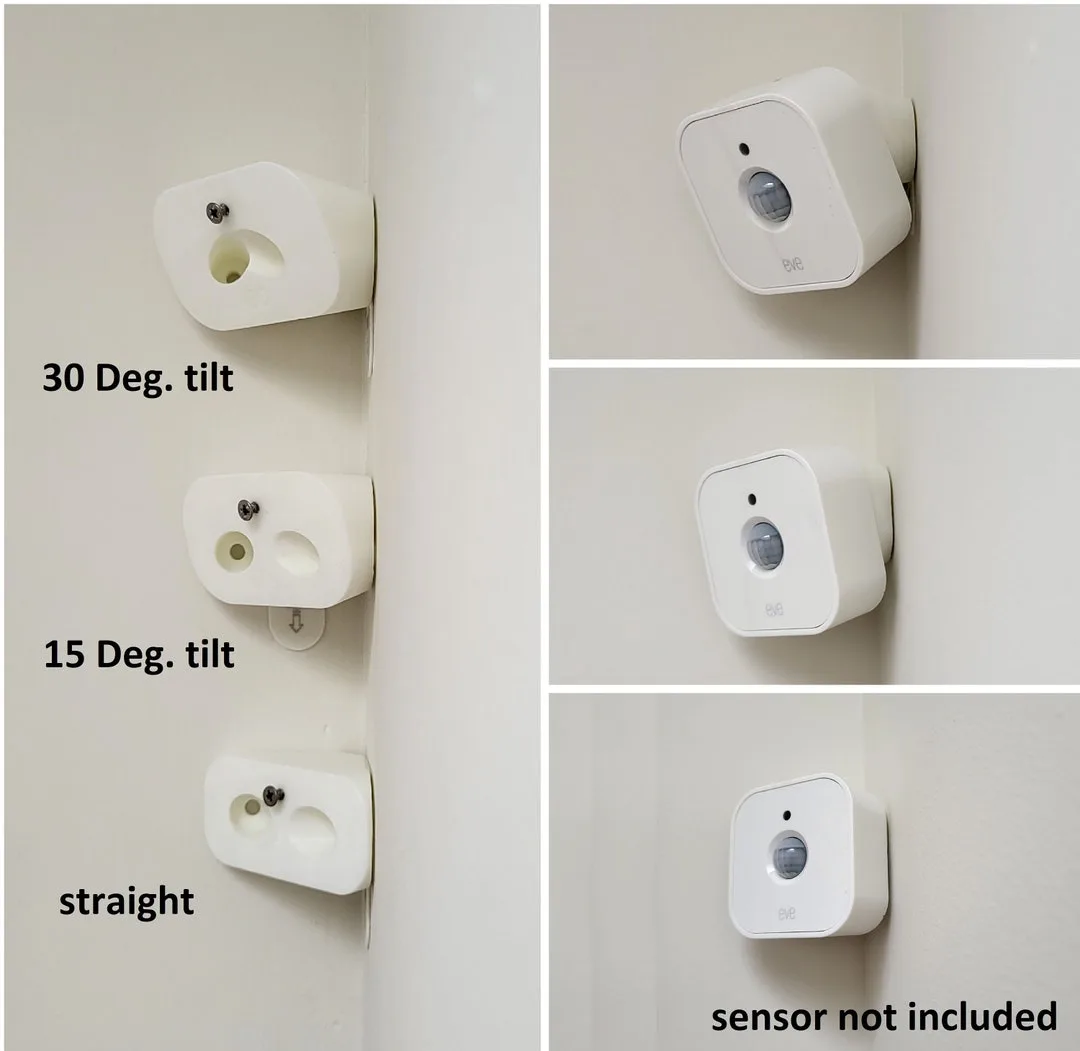

Image source: Web (Bing) / etsy.com (Web image (fair-use with source credit))
Where you place your motion sensors is arguably the most critical step. They need a clear view of the areas you want to monitor. For instance, sensors are commonly mounted in corners of rooms or hallways to maximize their field of view.
Avoid pointing them directly at heat sources like vents or windows that get direct sunlight, as these can trigger false alarms. Understanding these typical placements through visuals helps you map out your own home effectively.
Wiring It Up: What to Look For
For wired motion sensors, understanding the wiring is essential. You’ll need to identify the power wires and the signal wires. Most systems use low-voltage wiring, but it’s crucial to follow the manufacturer’s specific color coding and terminal connections.
Incorrect wiring can prevent the sensor from functioning or even damage your security system. Visual guides clearly illustrate which wires go where, taking the guesswork out of this step.
Step-by-Step: Installing Your Motion Sensor (Visual Cues)
Installing motion sensors doesn't have to be complicated if you follow a clear, visual process. This step-by-step guide breaks down each part of the installation, highlighting what you should see at each stage. Adhering to these steps helps ensure a secure and functional setup for your home security.

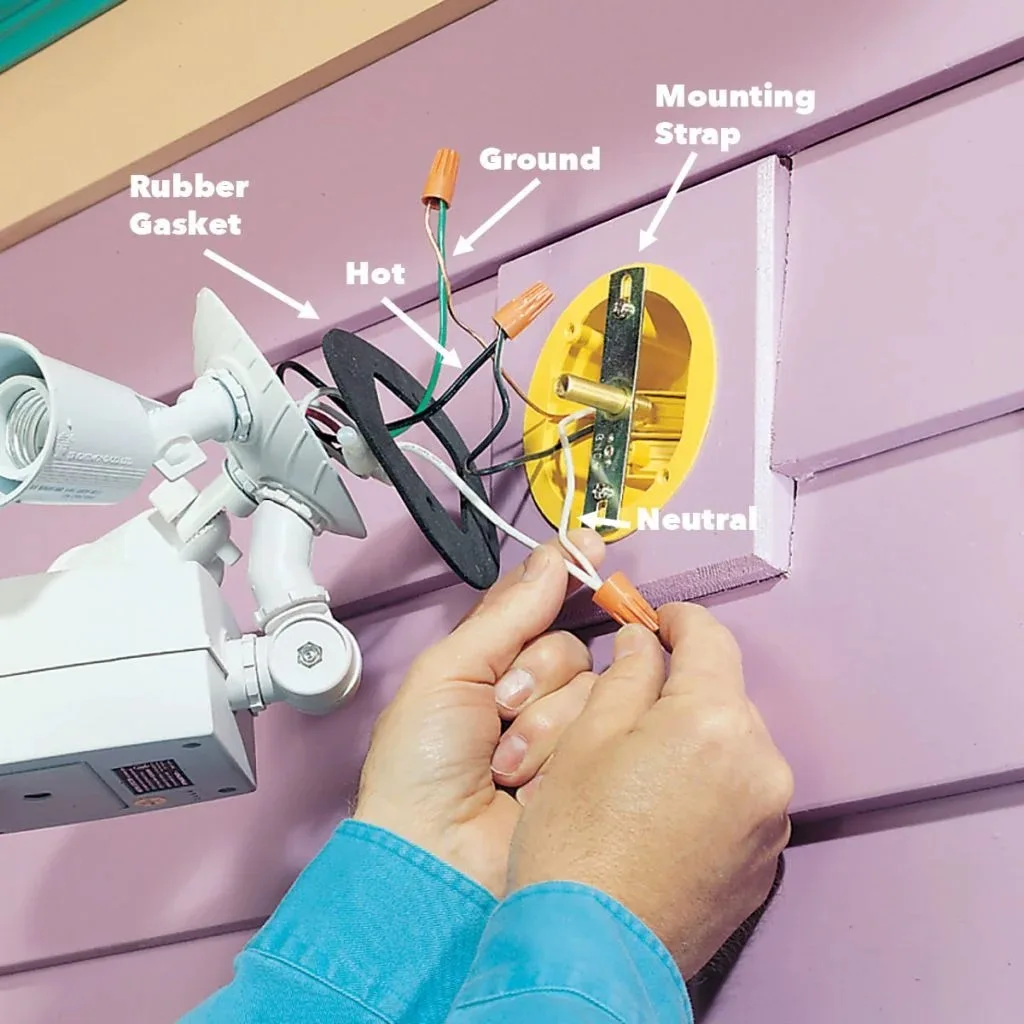

Image source: Bing (Web (fair-use with source credit))
Step 1: Planning the Perfect Spot
This is where visual planning truly shines. Before drilling any holes, stand in the room and visualize the sensor's coverage. Identify high-traffic areas, entry points, and blind spots in your home.
Think about how a thief might move through your space. Consider the optimal mounting height, usually between 6 and 8 feet off the ground, for most sensors to get the best detection range.
Step 2: Mounting the Bracket
Most motion sensors come with a mounting bracket. You’ll need to attach this securely to the wall or ceiling. Use a level to ensure it’s straight.
If you’re mounting into drywall, you’ll likely need to use wall anchors for a firm hold. For brick or concrete, you'll need masonry anchors. Visuals often show how to mark screw holes and drill pilot holes if necessary.
Step 3: Connecting the Wires (If Applicable)

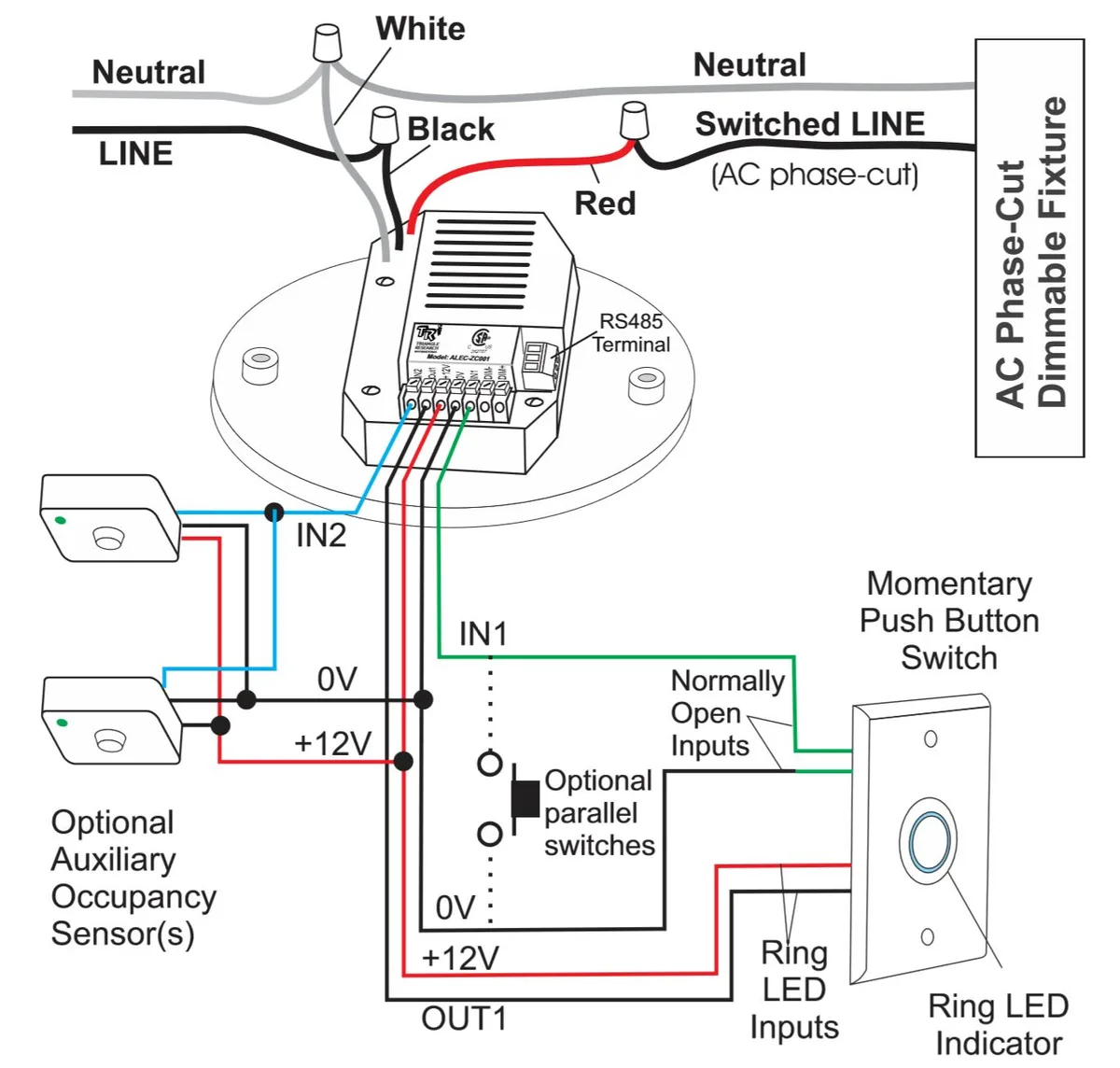

Image source: Bing (Web (fair-use with source credit))
If you’re installing a wired sensor, this is a critical visual step. Your sensor will have terminals for power and for the alarm signal. You’ll need to connect the appropriate wires from your security panel or transformer to these terminals.
Always refer to the wiring diagrams provided by the manufacturer. Ensuring the wires are stripped correctly and secured firmly in the terminals is vital. This ensures reliable communication with your central alarm system, which is a key component of how do home alarm systems work.
Step 4: Attaching the Sensor
Once the bracket is secure and any necessary wiring is done, you can attach the sensor unit itself. Most sensors simply clip or slide onto their brackets. You should hear a click or feel it seat firmly.
Make sure it’s aligned correctly, especially if it has a specific orientation for optimal detection.
Step 5: Powering On and Testing
After the sensor is physically installed, connect the power. For wireless models, this means inserting batteries; for wired models, it means completing the circuit. Once powered, you’ll need to test its functionality.
Most systems have a walk-test mode. Arm your system in this mode and walk through the sensor’s coverage area. Check your system’s control panel or app to confirm the sensor is triggering as expected.
Common Mistakes and How to Spot Them Visually
Even with visual guides, a few common mistakes can trip up even careful DIYers. Recognizing these errors visually before they cause trouble is your best defense against false alarms and unreliable security. The goal is a smoothly operating system that only signals real intrusions.
The "Too High" or "Too Low" Trap
Mounting sensors at the wrong height is a frequent oversight. If a sensor is mounted too high, its detection range might be reduced, creating blind spots directly below it. Conversely, if it's too low, it might be more susceptible to being accidentally triggered by pets or even ambient air currents.
Visualizing the coverage arc from the manufacturer's specifications at the intended height is key.
Avoiding False Alarm Triggers: What Not to Point At
The field of view of a motion sensor is its primary tool, but it can also be its downfall. Pointing a sensor directly at a window that receives direct sunlight, a heating vent, a ceiling fan, or even a radiator can cause false alarms. These heat sources and air movements can mimic human body heat or movement.
Visually inspect the sensor's line of sight for any of these common culprits.
Recognizing Blind Spots in Your Coverage
No single motion sensor can cover an entire room perfectly. Understanding the sensor's detection angle (field of view) and range is crucial to identifying potential blind spots. For example, a sensor mounted in a corner might miss movement directly in front of a large piece of furniture.
Visualizing the cone of detection helps you ensure overlapping coverage when using multiple sensors, which is a key aspect of what features should a home security system have.
Choosing the Right Motion Sensor: Key Visual Features
Selecting the right motion sensor depends on your specific needs and home setup. While many look similar, a closer visual inspection of their features can tell you a lot about their intended use and performance. Understanding these visual distinctions helps you pick a sensor that works best for your situation.
Wireless vs. Wired: What to See
The most obvious difference is how they're powered and communicate. Wireless sensors rely on batteries and transmit signals via radio frequencies (like Wi-Fi, Z-Wave, or Zigbee). They're easier to install as they don't require running wires through walls.
Wired sensors, on the other hand, are powered by your central security panel and connect via physical wires. They often offer more consistent performance and don't have battery concerns, but installation is more involved. This choice impacts setup difficulty and overall system design, relating to whether you're looking at a what is a wireless home security system or a what is a wired home security system.
Pet-Immune Sensors: Spotting the Difference
If you have pets, choosing a pet-immune motion sensor is almost a must. Visually, these sensors often have a different lens pattern or internal baffling designed to differentiate between the heat signatures of humans and smaller animals. Manufacturer specifications usually state the weight limit for pet immunity (e.g., up to 40 lbs).
You can't always see this difference externally, but the product labeling and specifications will make it clear.
Dual-Tech: Visual Clues to Integration
Dual-technology sensors combine two types of detection, typically PIR and microwave. This layered approach significantly reduces false alarms because both technologies must detect motion to trigger an alert. While you can't always see the internal workings, dual-tech sensors might appear slightly larger or have distinct lens patterns indicating the multiple detection methods.
This feature is part of what makes a what is a smart home security system so effective at reducing false triggers.
Pro Tips for Optimal Motion Sensor Performance
Getting your motion sensors installed correctly is the first step, but optimizing their performance ensures they work reliably long-term. These tips focus on maximizing detection accuracy and minimizing false alarms, drawing from aggregated user feedback and manufacturer guidelines. Paying attention to these details can save you a lot of frustration down the line.
Think of it like tuning an instrument. Even if it’s properly assembled, a few adjustments can make it sound so much better. For motion sensors, this means understanding how environmental factors and placement affect their sensitivity and operational range.
These are insights often found in what features should a home security system have, as the sensor is a critical component.
- Consider Airflow: Avoid placing sensors directly in the path of heating or cooling vents. Drafts can cause temperature fluctuations that mimic human presence, triggering false alarms.
- Avoid Direct Sunlight: Sunlight can heat up the sensor’s lens and internal components, potentially causing false triggers, especially during peak daylight hours. If a sunny spot is unavoidable, look for sensors with strong sunlight resistance or consider a different placement.
- Minimize Reflective Surfaces: While less common, highly reflective surfaces directly in the sensor's path could potentially confuse the detection pattern. In most home environments, this isn’t a major concern unless you have large, unusually placed mirrors.
- Regular Testing: As part of a good what is a diy home security system routine, periodically test your motion sensors, especially after significant weather events or home renovations that might have altered airflow or cleared obstacles.
Frequently Asked Questions About Motion Sensor Installation
How long does setup typically take?
Setup time can vary greatly, but for a wireless motion sensor, expect it to take anywhere from 15 to 60 minutes per sensor. This includes planning placement, mounting the bracket, inserting batteries, and testing the connection. For wired systems, installation can take longer, often 1 to 2 hours per sensor, depending on the complexity of running wires through walls.
Do I need special tools?
For most wireless installations, you might only need a screwdriver, a drill with appropriate bits for wall anchors, and a level. Wired installations will require more tools, including wire strippers, a voltage meter to check for power (if applicable), and possibly tools for running wires through walls or ceilings. Always check the manufacturer's requirements.
Can I install motion sensors myself, or is professional installation better?
Most modern wireless motion sensors are designed for DIY installation, making it a straightforward process for many homeowners. However, if you're dealing with a complex wired system, multiple sensors, or integrating into an existing advanced security setup, professional installation might be recommended. This ensures proper wiring, optimal placement, and full system integration, which is part of what defines a what is a professionally installed security system.
How do I know if my sensor is working correctly after installation?
The best way to test your motion sensor is to use its "walk-test" mode, if available. Arm your system in this mode, then walk through the sensor's detection zone. Your system's control panel or a connected app should indicate when the sensor is triggered.
This confirms both the power connection and the detection functionality.
What's the difference between PIR and microwave sensors?
Passive Infrared (PIR) sensors detect changes in heat signatures. Microwave sensors emit microwave pulses and detect disruptions in the reflected pattern. Dual-tech sensors combine both, requiring both to be triggered for an alarm, which significantly reduces false alarms.
Understanding this difference is key to selecting the right device for your needs, especially when considering what are the different types of home security systems.
