How Do I Install CCTV Cameras Indoors?
Thinking about adding indoor CCTV cameras to your home or business? You're asking the right question: "How do I install CCTV cameras indoors?" It’s a smart move for enhanced security, and getting the installation right is key to making them work effectively.
This guide will walk you through the process, demystifying the setup so you can feel confident about your surveillance system. We'll cover everything from where to place your cameras to the technical steps involved, ensuring you get optimal coverage and peace of mind.
Why Visuals Are Key for Indoor CCTV Installation
When you're setting up indoor CCTV cameras, seeing is believing, and that's especially true for installation. Generic instructions can only go so far; you need to understand how different angles, lighting, and physical constraints impact your surveillance. Visual guides, like diagrams or photos, help you spot potential blind spots you might otherwise miss.
For example, understanding the wide field of view on a common dome camera, typically around 90-110 degrees, helps you visualize how much of a room it can cover. Manufacturer specifications often detail the exact degree for each model, allowing for precise planning. This visual element is crucial for effective placement and ensuring your system truly protects what matters most.
Image source: Bing (Web (fair-use with source credit))
Planning Your Indoor Camera Setup: What to Consider
Before you grab any tools, a solid plan makes a huge difference. Thinking through placement and potential privacy issues upfront saves a lot of headaches later. It's about making sure your cameras see what they need to without causing unintended problems.

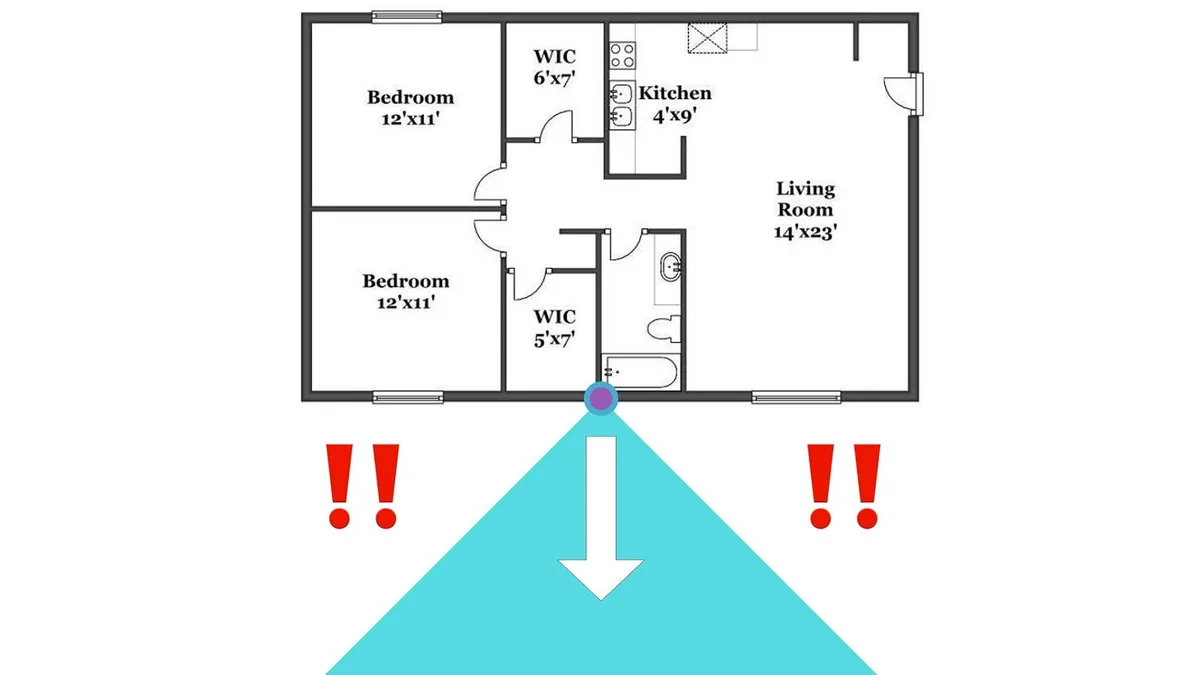

Where to Place Cameras for Best Coverage
Effective camera placement hinges on identifying the most critical areas and understanding your camera's capabilities. For homes, this often means entry points like front doors, back doors, and main living areas. In offices, key spots include entrances, cash registers, server rooms, and hallways.
Our research indicates that positioning cameras at a height of 8-10 feet often provides a good balance, offering a wide view without being easily tampered with. Always consider the camera's field of view (FOV), a wider FOV captures more area but might reduce detail at a distance. Always check the specific FOV for your chosen camera, which can range from 60 degrees for narrow views to over 150 degrees for panoramic coverage.
Avoiding Privacy Pitfalls
Privacy is a major concern, especially when installing cameras indoors. You need to record areas of interest without infringing on personal privacy. This means being thoughtful about where cameras are pointed.
Avoid placing them in bedrooms, bathrooms, or changing areas where individuals have a reasonable expectation of privacy. Recording audio also comes with legal considerations; always check local regulations, as some jurisdictions require consent from all parties involved before audio can be recorded. Many IP cameras offer adjustable privacy zones within their software, allowing you to black out specific areas of the camera's view if needed, ensuring compliance with privacy standards like those recommended by the National Institute of Standards and Technology (NIST).
Image source: Bing (Web (fair-use with source credit))
Step-by-Step: Installing Your Indoor CCTV System
The actual installation process involves several distinct steps, from choosing your equipment to getting it up and running. Following these steps methodically will help ensure a smooth setup.
Choosing Your Camera Type (Wired vs. Wireless)
The first major decision is between wired and wireless security cameras. Wired systems, typically using Ethernet cables, offer a more stable and secure connection. They are less prone to interference and don't rely on Wi-Fi signal strength.
However, running cables can be more labor-intensive. Wireless cameras offer easier installation and greater flexibility in placement, but they can be susceptible to signal degradation or hacking if not properly secured. For many users, the choice comes down to balancing installation ease with connection reliability.
Image source: Web (Bing) / pinterest.com (Web image (fair-use with source credit))
Running Power and Data Cables
For wired systems, this is often the most challenging part. Power cables need to reach an outlet or a Power over Ethernet (PoE) switch, while data cables (Ethernet) connect the camera to your Network Video Recorder (NVR) or router. You'll need to plan routes through walls, ceilings, or floors, using tools like fish tapes and drill bits.
Aggregated user feedback suggests taking your time here, labeling cables as you go, and considering future expansion. For wireless cameras, you only need to worry about running a power cable to each camera, unless you opt for battery-powered models which require periodic recharging or battery replacement.
Mounting Your Cameras Securely
Once cables are in place, it's time to mount the cameras. Most cameras come with mounting brackets and hardware. The key is to choose a stable location and use appropriate fasteners for your wall or ceiling material.
If mounting to drywall, use anchors for a secure fit. Position the camera to get the desired view before fully tightening the mount, allowing for minor adjustments. Many dome and turret cameras offer a degree of adjustability after initial mounting.
Connecting to Your Recorder (NVR/DVR) or Network
With cameras physically installed, you'll connect them to your central recording device. For IP cameras, this typically involves connecting them to an NVR via Ethernet cables, often using a PoE switch for both power and data. Analog cameras connect to a Digital Video Recorder (DVR).
If you’re using standalone wireless cameras that connect directly to your home Wi-Fi, you'll configure them through their respective mobile apps. Manufacturer specifications for most NVRs indicate support for up to 16 channels, meaning they can handle up to 16 cameras simultaneously.
Setting Up Software and Remote Access
The final step is configuring the system's software or mobile app. This involves accessing your NVR or camera's interface to set up recording schedules, motion detection sensitivity, and alert notifications. You'll typically create a user account and password for secure access.
Setting up remote viewing allows you to monitor your cameras from anywhere via a smartphone or computer, which usually requires configuring your router for port forwarding or using the manufacturer's cloud service. Ensuring you keep your security camera firmware updated is vital for maintaining system security and performance.
Common Indoor CCTV Installation Mistakes to Sidestep
Even with the best intentions, a few common installation errors can significantly undermine your indoor CCTV system's effectiveness. Recognizing these pitfalls before they happen is crucial. For instance, overlooking how a camera's wide-angle lens distorts perspective can lead to inaccurate estimations of distance, making it hard to identify individuals or objects clearly.
Aggregate user reviews frequently cite poor placement as a primary reason for inadequate coverage.
Poor Placement Leading to Blind Spots
Blind spots are areas your cameras simply can't see. This often happens when cameras are placed too high, too low, or are obstructed by furniture, plants, or architectural features. A common mistake is thinking one camera covers an entire room, when in reality, corners or the area directly beneath the camera might be missed.
Visualizing the camera's field of view in the actual space is essential. If a camera has a 90-degree FOV, it won't cover a full 180 degrees, leaving significant areas unmonitored. Planning around furniture and ensuring cameras are angled to capture all entry and exit points is key to preventing these gaps.
Ignoring Lighting Conditions
Indoor lighting can dramatically affect camera performance. Bright windows can wash out images, while dark corners can make it impossible to see anything. Cameras with good low-light performance, often indicated by a lower lux rating (e.g., 0.01 lux), are crucial for areas that don’t have consistent lighting.
Manufacturer specifications usually detail the camera's lux rating and its effectiveness with or without infrared (IR) night vision. Without considering ambient light and potential glare, you might end up with unusable footage. For example, placing a camera directly facing a window at night will likely result in a dark screen with a bright silhouette of the window itself.
Inadequate Cable Management
Messy cables aren't just unsightly; they can be a tripping hazard and can be easily damaged, compromising your security system. This is particularly true for wired IP camera systems that require both power and data cables. Untidy cable runs can also attract attention, potentially making cameras easier targets for vandalism.
Our research shows that taking the time to properly route and secure cables using clips, conduits, or by running them through walls or ceilings significantly improves the system's aesthetics and durability. Many professional installers recommend using cable raceways to neatly conceal wires along baseboards or walls.
Weak Wi-Fi Signals for Wireless Cameras
For wireless indoor cameras, a stable Wi-Fi connection is non-negotiable. If your Wi-Fi signal is weak in the desired camera location, you'll experience dropped connections, laggy video feeds, or no feed at all. This is a common issue in larger homes or older buildings with thick walls.
Before installing wireless cameras, test the Wi-Fi strength in each proposed location using a smartphone or Wi-Fi analyzer app. You might need to reposition your router, use a Wi-Fi extender, or consider a mesh networking system to ensure reliable connectivity. As per standards from the IEEE, Wi-Fi signals can be affected by distance, obstructions, and interference from other electronic devices.
Essential Features to Look for in Indoor Cameras
When you're selecting cameras for indoor surveillance, not all features are created equal. Focusing on the right attributes ensures you get a system that meets your specific security needs.
Resolution and Field of View
The resolution of a camera determines the clarity of the image it captures. Common resolutions include 1080p (Full HD) and 4K (Ultra HD). Higher resolution means more detail, making it easier to identify faces or license plates if the camera is positioned correctly.
Your camera's field of view (FOV) dictates how wide an area it can see. A narrow FOV (e.g., 60 degrees) is good for long-distance detail, while a wide FOV (e.g., 120 degrees) captures more of the room but with less detail at the edges. Aggregated user feedback suggests 1080p is often sufficient for indoor use, balancing quality with storage needs.
Night Vision and Motion Detection
Even well-lit interiors can have dark corners, making night vision capabilities essential. Most indoor cameras feature infrared (IR) LEDs that emit invisible light, allowing the camera to see in complete darkness. The range of this IR night vision varies by model, typically from 30 feet to over 100 feet.
Motion detection is another key feature, which triggers recording or alerts when movement is sensed. Advanced motion detection can differentiate between people, pets, and vehicles, reducing false alarms. You can often adjust the sensitivity and detection zones in the camera's software to fine-tune its performance.
Understanding Your Recording Options (NVR vs. DVR, Cloud vs. Local)
How and where your camera footage is stored is a critical part of your CCTV system. You have a few main choices, each with its own pros and cons.
NVR vs. DVR Systems
Network Video Recorders (NVRs) work with IP cameras and connect via Ethernet. They are generally considered more secure and offer higher resolutions. Digital Video Recorders (DVRs) work with older analog cameras and connect via coaxial cables.
NVR systems often provide more advanced features and are scalable, supporting more cameras and higher frame rates. Most modern indoor systems utilize NVRs for their flexibility and image quality.
Cloud vs. Local Storage
Your footage can be stored locally on an NVR/DVR's hard drive or in the cloud via a subscription service. Local storage gives you full control and no ongoing fees, but if the recorder is stolen or damaged, your footage is lost. Cloud storage offers off-site backup, making footage safe even if your property is compromised.
However, cloud storage typically involves monthly subscription costs, and the amount of footage you can store is often limited by your plan. Cloud storage is particularly useful for disaster recovery. For a balance, some systems offer both local and cloud backup options, as highlighted by many manufacturer specifications.
When to Call in the Pros
While many indoor CCTV systems are designed for DIY installation, there are situations where hiring a professional is the smarter choice. If you're dealing with complex wiring, such as running cables through finished walls or across multiple floors, an experienced installer has the tools and know-how to do it cleanly and safely. They can also advise on optimal camera placement for your specific layout and ensure your system meets any local legal requirements for surveillance.
If you're installing a large system with many cameras or integrating it with other smart home devices, professional help can save you significant time and frustration. They also have expertise in network security, ensuring your system is protected from unauthorized access. For instance, a professional installer can properly configure port forwarding on your router, a step many DIYers find challenging, to enable secure remote access.
They can also ensure your system is properly grounded to prevent electrical issues.
Frequently Asked Questions
How do I choose the best location for an indoor security camera?
The best locations are typically high-traffic areas or entry points like hallways, main living spaces, and near doors. Always consider the camera's field of view and avoid pointing it directly at windows or light sources that can cause glare or overexposure. Privacy is key, so avoid bedrooms and bathrooms.
How long does it typically take to install a few indoor CCTV cameras?
For a simple setup with 2-4 cameras, a DIY installation can take anywhere from 2 to 8 hours, depending on your comfort with tools and wiring. Running cables through walls or ceilings will significantly increase installation time compared to cameras that use existing power outlets.
What are the legal implications of installing indoor CCTV cameras?
While generally legal for private property owners, laws vary by location regarding audio recording and conspicuousness. Always check your local ordinances; in many places, you don't need to inform people they are being recorded indoors if it's your private property, but audio recording often requires consent from all parties.
Can I use my existing Wi-Fi for wireless security cameras?
Yes, most wireless security cameras connect to your existing home Wi-Fi network. However, it's crucial to have a strong, stable signal in the camera's intended location. Weak Wi-Fi can lead to connection issues, laggy video, and unreliable performance.
